Castors

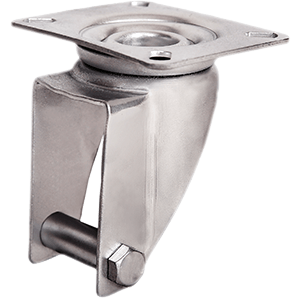

LDP Series 400

  • Light Duty Pressed Steel Castor
  • Load Capacity up to 200 kg
  • Sheet thickness 3mm
  • Press bended fork legs
  • Hollow riveted (Kingpin less) swivel assembly consists double ball bearing
  • Completely sealed system eliminates the problem of steel balls coming out
Specification:
  • Mounting Plate Hole Centers –
    • 72 x 72 mm (75 and 100 mm Diameter Wheel)
    • 90 x 65 mm (125, 150 and 200 mm Diameter Wheel)
  • Hole size – 10 mm
  • Wheel Diameter up to 200 mm ; Tread Width 38 & 50 mm
  • Wheel Options – PM, NPU, PPU, NY, UHP, CIRB, PF, CI

MDP Series 500

  • Medium Duty Pressed Steel Castor
  • Load Capacity up to 600 kg
  • Sheet thickness 4mm
  • Press bended fork legs
  • Hollow riveted (Kingpin less) swivel assembly consists double ball bearing
  • Completely sealed system eliminates the problem of steel balls coming out
  • Optimum stability & performance
Specification:
  • Mounting Plate Hole Centers – 100 x 100 mm (Swivel) ; 120 x 60 mm (Fixed)
  • Hole Size – 13 mm
  • Wheel Diameter up to 200 mm ; Tread Width 38 & 50 mm
  • Wheel Options - PM, NPU, PPU, NY, UHP, CIRB, CPU, PF, CI

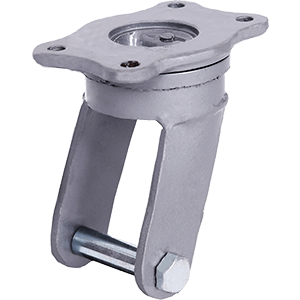

MHD Series 600

  • Medium-Heavy Duty Forged Steel Kingpin less Castor
  • Load Capacity up to 900 kg
  • Double side welded fork legs
  • Better performance as compared to pressed steel castors
  • Swivel raceway accommodating steel balls machined to precision and accuracy
  • Exclusively developed Double Bearing Castor for increased load carrying capacity and improved swivel action
  • Provision of grease nipple to lubricate the completely sealed swivel assembly
Specification:
  • Mounting Plate Hole Centers - 100 x 50 mm
  • Hole Size – 10 mm
  • Wheel Diameter up to 200 mm ; Tread Width 38 & 50 mm
  • Wheel Options - PM, NPU, PPU, NY, UHP, CIRB, CPU, PF, CI

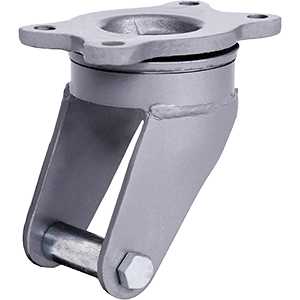

HD Series 800

  • Heavy Duty Forged Steel Kingpin less Castor
  • Load Capacity Up to 1600 kg
  • Double side welded fork legs
  • Withstand occasional Shock Loads
  • Swivel raceway accommodating steel balls machined to precision and accuracy
  • Swivel raceway size is more than MHD Series 600
  • Exclusively developed Double Bearing Castor for increased load carrying capacity and improved swivel action
  • Provision of grease nipple to lubricate the completely sealed swivel assembly
Specification:
  • Mounting Plate Hole Centers – 120 x 60 mm
  • Hole Size – 13 mm
  • Wheel Diameter up to 300 mm ; Tread Width 50 & 75 mm
  • Wheel Options - PM, NPU, PPU, NY, UHP, CIRB, CPU, PF, CI

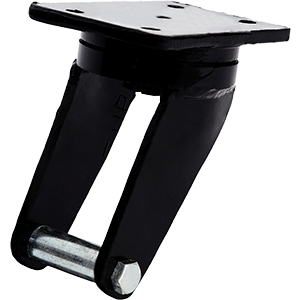

XHD Series 900

  • Extra Heavy Duty Forged Steel Single Piece Kingpin Castor
  • Load Capacity up to 3000 kg
  • Double side welded fork legs
  • Swivel assembly consists of Thrust Ball Bearing and Tapered Roller Bearing to counter axial and radial load
  • Slotted Nut over the kingpin is adjustable and locked with cotter pin
  • Provision of grease nipple to lubricate the swivel assembly
Specification:
  • Mounting Plate Hole Centers – 120 x 60 mm
  • Hole Size – 13 mm
  • Wheel Diameter up to 300 mm ; Tread Width 50 & 75 mm
  • Wheel Options - UHP, CIRB, CPU, PF, CI

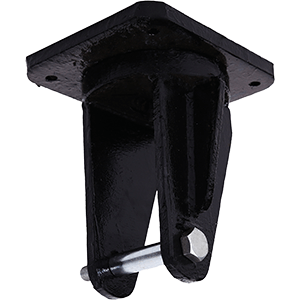

SHD Series 1000

  • Super Heavy Duty Fabricated Steel Castor
  • Load Capacity up to 8000 kg
  • Double side welded fork legs
  • Swivel assembly consists of Thrust Ball Bearing and Tapered Roller Bearing to counter axial and radial load
  • Slotted Nut over the kingpin is adjustable and locked with cotter pin
  • Superior Performance
  • Built to carry the heavy loads under most challenging situations
  • Provision of grease nipple to lubricate the swivel assembly
Specification:
  • Mounting Plate Hole Centers – 200 x 150 mm
  • Hole Size – 16 mm
  • Wheel Diameter up to 400 mm ; Tread Width 75 & 100 mm
  • Wheel Options - UHP, CIRB, CPU, CI
Note: For Load Capacity more than 8000 kg, kindly contact us to provide the best solution.

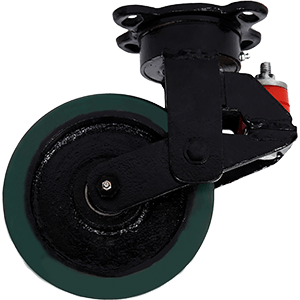

SPR Series

  • Spring Loaded Castor
  • Suitable For MHD Series 600, HD Series 800, XHD Series 900
  • Spring element fitted with both swivel and fixed castor to dampen the shock loads effectively
  • Equalize the load among four or more castors while moving over rough or uneven terrain
  • Reduced floor wearing and increased castor life
  • Mostly used in power towing applications
