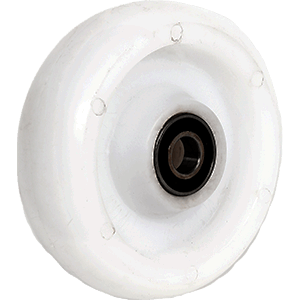

PM Wheel
- Injection Molded Polypropylene Copolymer
- Light in weight and Fair Load Carrying Capacity
- Good abrasion resistance
- Resistant to water, grease, oil, etc.
- Economical option
- Size - Wheel Diameter up to 300 mm ; Tread Width 38, 50 & 75 mm

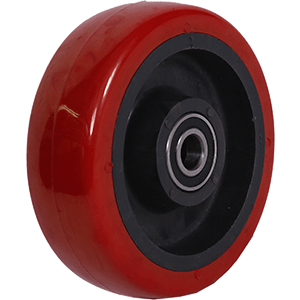

NPU/PPU Wheel
- Polyurethane mechanically bonded to Nylon or Polypropylene Core
- Good Load Carrying Capacity
- Good Abrasion Resistance
- Low noise level
- Offers great floor protection and non-marking; Ideal for Epoxy Coated Floors
- Hardness Of Polyurethane – 94 ± 5 Shore A
- Size - Wheel Diameter up to 200 mm ; Tread Width 38 & 50 mm

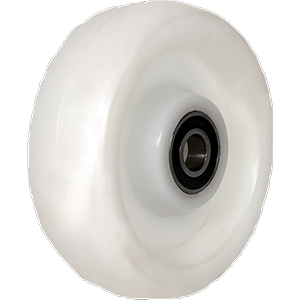

NY Wheel
- Injection molded Nylon
- Light in weight but high load carrying capacity
- Water resistant and high abrasion resistance
- Resistant to most chemicals and solvents
- Size - Wheel Diameter up to 200 mm ; Tread Width 38 & 50 mm

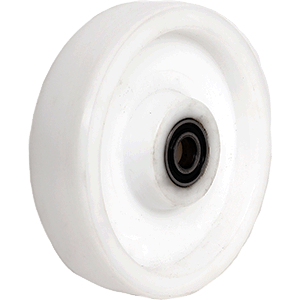

UHP Wheel
- Compression Molded Ultra High Molecular Weight Polyethylene
- High Load Carrying capacity
- High abrasion resistance
- Offers more floor protection as compared to CI wheels
- Resistant to most chemicals, water, solvents, etc.
- Low Coefficient of Friction material
- Can be molded over steel sleeve/bushing to increase the life of wheel
- Size - Wheel Diameter up to 400 mm ; Tread Width 50, 75 & 100 mm

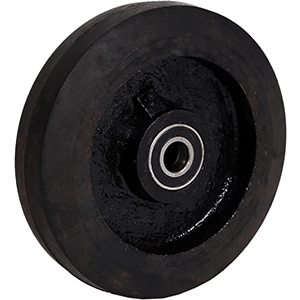

CIRB Wheel
- Rubber compound molded over cast iron core
- Good load carrying capacity
- Good Abrasion resistance
- Low noise level and rugged usage
- Offers good floor protection
- Hardness of Rubber – 75 ± 5 Shore A
- Size - Wheel Diameter up to 400 mm ; Tread Width 50, 75 & 100 mm

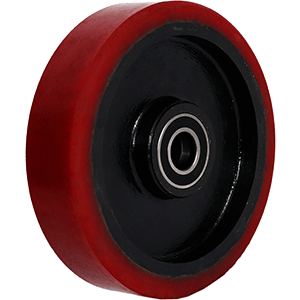

CPU Wheel
- Cast polyurethane bonded over cast iron / aluminium / steel core
- High load carrying capacity
- High abrasion resistance
- Good shock absorption capabilities and low noise level; Ideal for Power Towing
- Offers great floor protection and non-marking; Ideal for Epoxy Coated Floors
- Hardness of Polyurethane – 80 Shore A to 75 Shore D.
- Size - Wheel Diameter up to 400 mm ; Tread Width 50, 75 & 100 mm

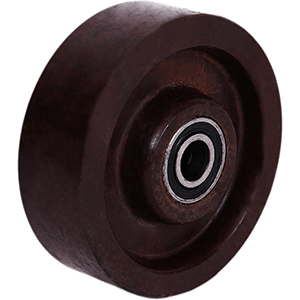

PF Wheel
- Compression molded fiber filled phenol resin
- High load carrying capacity
- Maximum Working temperature up to 170o C
- High Abrasion resistance
- Resist Corrosion from oil, grease, water and other solvents or acids
- Offers more floor protection as compared to CI wheels
- Size - Wheel Diameter up to 300 mm ; Tread Width 50 mm

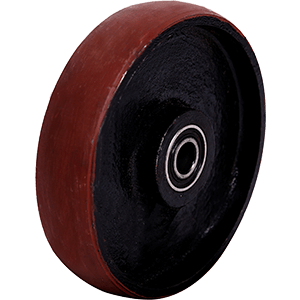

CI Wheel
- Cast Iron Wheels
- High load carrying capacity
- Very High temperature applications
- Long wearing and excellent resistance to poor floor conditions
- Resistant to chemicals, grease, oils, metal chips, etc.
- Tread options available – Crown, Tapered, V-groove, Flanged, Square Groove
- Size - Wheel Diameter up to 300 mm ; Tread Width 38, 50 & 75 mm

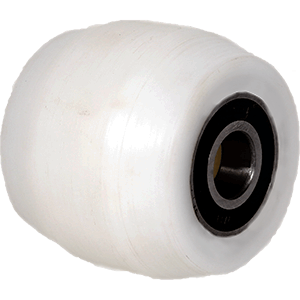

NY Roller
- Injection molded Nylon
- Light in weight but high load carrying capacity
- Water resistant and high abrasion resistance
- Resistant to most chemicals and solvents

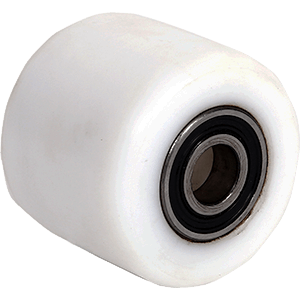

UHP Roller
- Compression Molded Ultra High Molecular Weight Polyethylene
- High Load Carrying capacity
- High abrasion resistance
- Resistant to most chemicals, water, solvents, etc.
- Low Coefficient of Friction material
- Can be molded over steel sleeve/bushing to enhance the life of roller

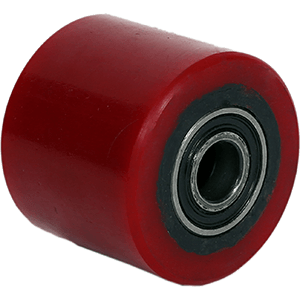

CIPU Roller
- Cast polyurethane chemically bonded over cast iron core
- High load carrying capacity
- High abrasion resistance
- Good shock absorption capabilities and low noise level
- Offers great floor protection and non-marking; Ideal for Epoxy Coated Floors
- Hardness Of Polyurethane – 94 ± 5 Shore A
